HT Series

It is made to guarantee a continuous production in the sublimation line.

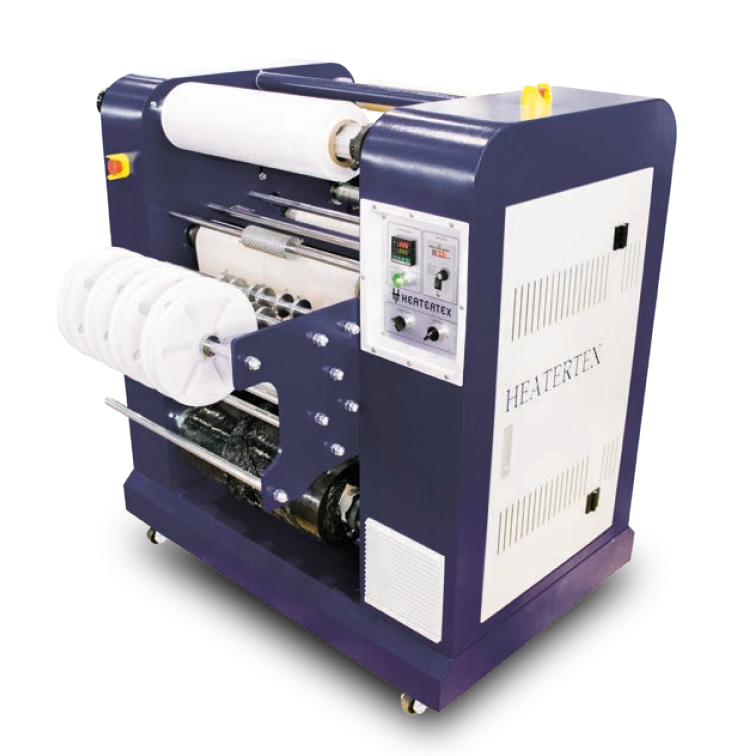

A robust and flexible solution for roll-to-roll and piece-by-piece applications, the Heatertex Rotary Heat Transfer Machine HT Series is designed for the textile industry. This series comes in a variety of configurations, with drum diameters ranging from 9 to 17 inches and a large transfer area of 67 to 87 inches. Featuring a PLC and optional touch screen, this advanced calibration system provides comfort, security, and energy efficiency.

Contact US


• Continuous sublimation of polyester fabric ribbons
• Ideal for sublimating polyester ribbons and materials
• Steel cylinder with Teflon surface to prevent rusting and maintain uniform temperature
• Automatic cylinder temperature control
• Cylinder rotation speed controller
• Independent control system on each roller to collect used material
• Three supply loading rollers
• Roller tension control through friction discs
• Cylinder rotation speed controller
• Industrial heating system with thermal oil
• Effective, advanced and economical heating system.
• Oil level indicator to measure the amount of oil in the cylinder
• Emergency stop device
• Designed for continuous roll-to-roll sublimation of polyester fabric tapes
• Automatic blanket position correction system
• Blanket protection alarm system triggered by advancedsensors.

Technical Specifications


Belt width:
20” / 50 cm

Heat transfer principle:
Thermal oil

Thermal cylinder diameter:
11” / 28 cm

Power required:
5 KW

Startup time:
Approx. 45 / 60 minutes

55”x 51”x 41” / 140cm x 130cm x 105cm

Approx. 600kg / 1300lb

Max temp:
450°F / 240°C

50 – 60 Hz

20A-25A at AC 220 V

Belts, shoelaces, bracelets, collars, elastic bands, pet leashes, lanyards

Features and Specifications
