HT Series

Engineered for precision textile sublimation with advanced automation and continuous production performance.

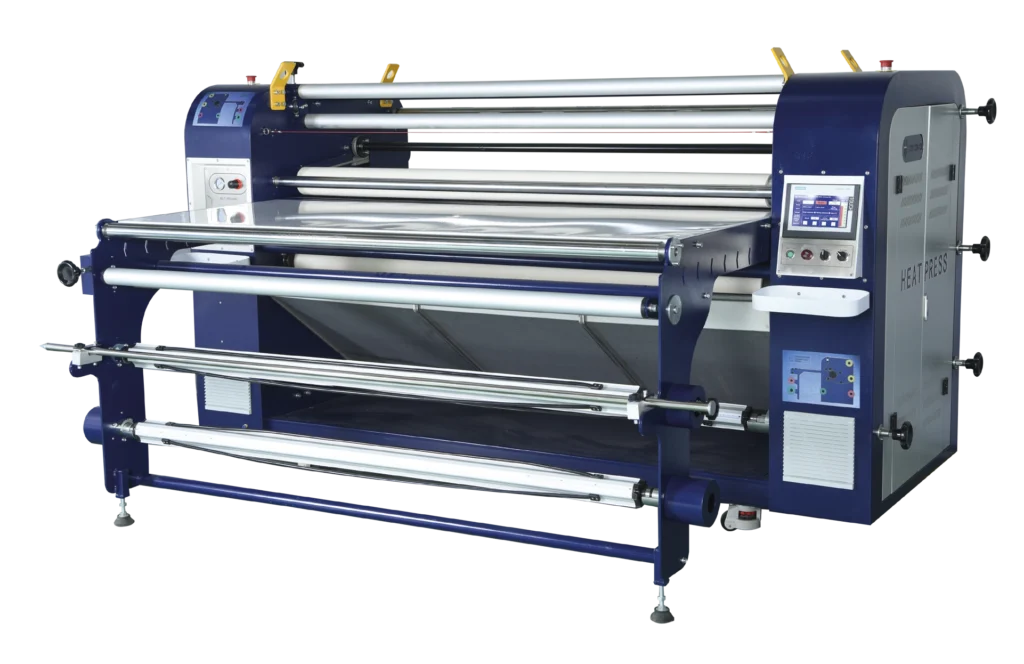

The Heatertex HT07509P Rotary Heat Transfer Machine combines a thermal oil heating system, PLC touchscreen controls, pneumatic pressure technology, and automatic correction for exceptional transfer quality. Designed for both roll-to-roll and piece-by-piece production, it delivers stable operation, high productivity, and reliable industrial performance.

HT07509P

Advanced PLC touchscreen control system
Thermal oil heating technology
Pneumatic pressure system with air compressor
Automatic blanket correction system
190 cm (75″) working width
9″ (22 cm) heated steel cylinder
Production speed up to 1.3 m/min
Operating temperature from 190°C to 230°C
Three winding rollers
220 VAC electrical system
11 kW nominal power
Heating time of 50–70 minutes
Designed for continuous roll-to-roll and piece-by-piece production
Ideal for apparel, flags, curtains, home textiles, and promotional products

Technical Specifications

Voltage:
220 VAC

Nominal Power Consumption:
11 kW

Cylinder:
Width: 190 cm / 75″
Diameter: 22 cm / 9″

Feeding Rollers:
3 + 1 Spreader Bar (Slim Cone)

Production Speed:
0.5 to 1.3 m/min (19″ to 51″/min)

Heating Time:
50–70 minutes

Sublimation Width:

190 cm / 75″ approx.*

The sublimation width depends on the condition of the felt blanket.

Correction System:
Automatic

Pressure System:
Pneumatic – Air compressor included

Control System:
Advanced control system with automatic shut-off, automatic start-up, and PLC touchscreen configuration.

Operating Temperature:
190°C – 230°C (374°F – 446°F)

Rewinding Rollers:
3

Applications:
Dresses, skirts, kimonos, jackets, leggings, crop tops, banners, curtains, footwear, hanging banners, parade banners, vests, bedspreads, and more.
