HT Series

Designed for continuous textile sublimation with stable performance and exceptional temperature uniformity.

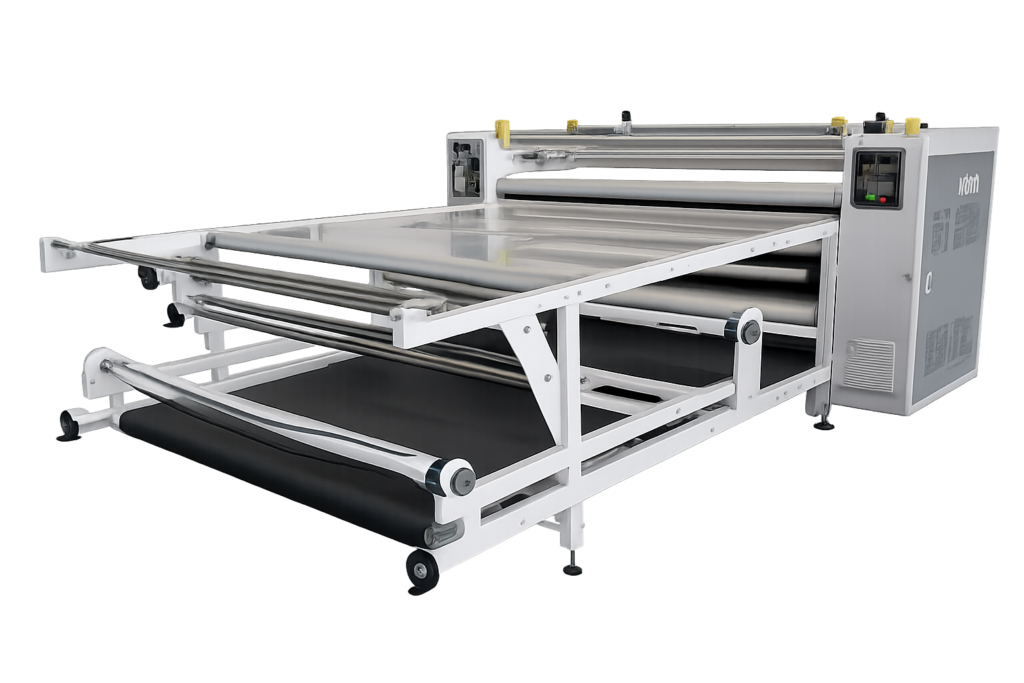

The Heatertex HT107 Rotary Heat Transfer Machine features a thermal oil heating system, automatic correction technology, and precision temperature and speed controls. Built for continuous roll-to-roll and piece-by-piece production, it delivers reliable operation, consistent transfer quality, and high productivity for industrial textile applications

HT107

Thermal oil heating system
Electric control panel with temperature and speed adjustment
Automatic correction system
Uniform thermal contact pressure
1700 mm (67″) working width
420 mm (16.5″) heated cylinder diameter*
Transfer speed from 1 to 2 m/min
Operating temperature up to 230°C
Independent winding and unwinding system
Multiple feeding rollers for continuous production
220 / 380V three-phase electrical system
18 / 23 kW nominal power
Heating time of 45–60 minutes
Designed for roll-to-roll, piece-by-piece, and custom textile sublimation

Technical Specifications

Voltage:
220 / 380 VAC, 3-Phase

Nominal Power Consumption:
18 / 23 kW

Cylinder:
Width: 1700 mm / 67″
Diameter: 420 mm / 16.5″

Feeding Rollers:
Multiple feeding rollers for continuous operation

Transfer Area:
14,5″ x 23″ / 40cm x 60cm

Heating Time:
45–60 minutes

Sublimation Width:
1600 mm / 63″ approx.*

The sublimation width depends on the condition of the felt blanket.

Correction System:
Automatic

Pressure System:
Uniform pressure through thermal contact

Control System:
Electrical control panel with temperature and speed adjustment.

Operating Temperature:
0°C – 230°C (32°F – 446°F)

Rewinding Rollers:
Independent winding and unwinding system

Applications:
Roll-to-roll textile sublimation, piece-by-piece production, and customized applications.
